Tank And Container

The Gauge House has partnered with Pic Gauges to deliver to you their line of high quality gauges and thermometers that is suited for any job you many need. Contact one of our sales representative today to learn how we can get the gauges in your hands and put to work on your next job.

  • All Stainless Lower Mount
  • Bimetal Thermometer
  • Bulk-HD Series
  • Remote Dial & Gas Actuated Thermometers
All stainless

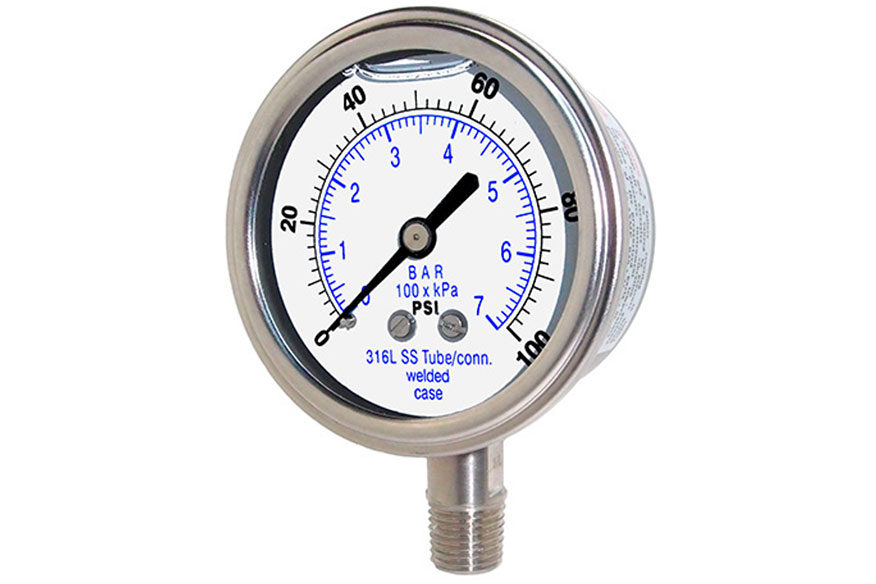

301LFW All Stainless Lower Mount

Heavy duty, all stainless steel gauge with welded case-to-stem connection
Stainless steel case and bezel, 316 stainless steel internals
Glycerine filled for added durability in applications where vibration or pulsation is present

Specifications:

Dial- 1 1⁄2” (40 mm), 2” (50 mm), 2 1⁄2” (63 mm),
4” (100 mm) See page 37, 6” (150 mm)

Case- Stainless steel, glycerine filled (available dry) Welded case-to-stem connection

Wetted Parts- 316 stainless steel

Bezel- Stainless steel, fixed

Lens- Polycarbonate

Pointer- Black aluminum

Connection- Lower mount 1 1⁄2” dial = 1⁄8” NPT, 2” dial = 1⁄8” or 1⁄4” NPT, 2 1⁄2” dial = 1⁄4” NPT

Scale- Standard: psi/BAR (x 100 = kPa)

Accuracy- 3-2-3% of span 1 1⁄2” & 2” ASME B40.1 Grade B 2-1-2% of span 2 1⁄2” ASME B40.1   Grade A

Ambient Temp- Glycerine Filled = 30° F to 160° F, Dry = -30° F to 180° F

Available options:

▪ Certificate of Accuracy, NIST traceable

▪ Custom Dial

▪ Liquid Fill Options

▪ Anti-Vibration Movement

▪ Dry, Fillable Case

▪ Glass Lens

▪ Cleaned for Oxygen Service (dry only)

▪ Special Connection Size

▪ Protective Rubber Cover

▪ Single Scale

▪ Max/Min Pointer



Dial type bimetal thermometer
Features anti-vibration design, anti-parallax dial, hermetically sealed case

Specifications:

Dial- 2” (50 mm), 3” (76 mm), 5” (130 mm) Anti-parallax dial design

Case- Stainless steel, hermetically sealed

Stem- 316 stainless steel, wleded to connection

Lens- Glass

Pointer- Black aluminum

Connection- Back mount (90°), fixed 1⁄4” NPT on 2”, 1⁄2” NPT on 2”, 3” & 5”

Scale- Standard: dual scale F & C

Accuracy- 1% full scale per Grade A, ASME B40.3

Ambient Temp- -30° F to 180° F

External Adjustment- Zero reset screw on 3” & 5” dial

Available options:

▪ Certificate of Accuracy, NIST traceable

▪ Custom Dial

▪ Special Connection Size

▪ Single Scale

▪ Special Ranges

▪ Custom Lens Material



Bimetal Thermometer- Fixed Back Mount (90 deg

Bimetal Thermometer- Fixed Back Mount

BULK-HD SERIES

Bulk-HD Series

Heavy duty 4 1⁄2” gauge designed for the dry bulk tanker market
With anti-vibration movement for enhanced repeatability and durability

Specifications:

Dial- 4 1⁄2” (113 mm)

Case- Black steel, epoxy coated with Removable back flange Dry, non-fillable

Wetted Parts- Copper alloy

Movement- Heavy duty stainless steel Anti-vibration

Ranges- Standard: 0/30 psi, 30” Hg Vac/0/30 psi

Lens- Plastic

Pointer- Adjustable, black aluminum

Connection- Lower mount 1⁄4” NPT

Scale- Standard: single scale psi

Accuracy- 1% of span, ASME B40.1 Grade 1A

Ambient Temp- -40° F to 140° F

Available options:

▪ Certificate of Accuracy, NIST Traceable

▪ Custom Dial

▪ Special Connection Size

▪ Other Lens Material





REMOTE DIAL VAPOR THERMOMETER

Remote Dial Vapor Thermometer

Specifications:

Dial Size- 3 1⁄2” (88.9 mm)

Case- Syainless steel

Capillary Size- 5 feet

Lens- Polycarbonate

Pointer- Black aluminum

Scale- Standard: dual scale °F & °C

Temperature range- Custom, Stock

Accuracy- 1% full scale

Box Quantity- 30 pieces

Bulb- 3” stainless steel plain bulb

Available options:

▪ Other capillary lengths available upon request

▪ Other ranges available upon request

▪ Other dial sizes available upon request





gas-actuated

Gas Actuated Thermometer

Specifications:

Dial Size- 4 1⁄2” (125 mm), 6” (150 mm)

Case- Phenolic

Capillary Length- Custom

Lens- Plastic

Pointer- Black aluminum, slotted adjustable

Scale- Standard: dual scale °F & °C

Temperature range- Custom

Accuracy- 1% full scale

Bulb- 6” stainless steel with 1⁄2” NPT bushing

Available options:

▪ Other stem lengths available upon request
